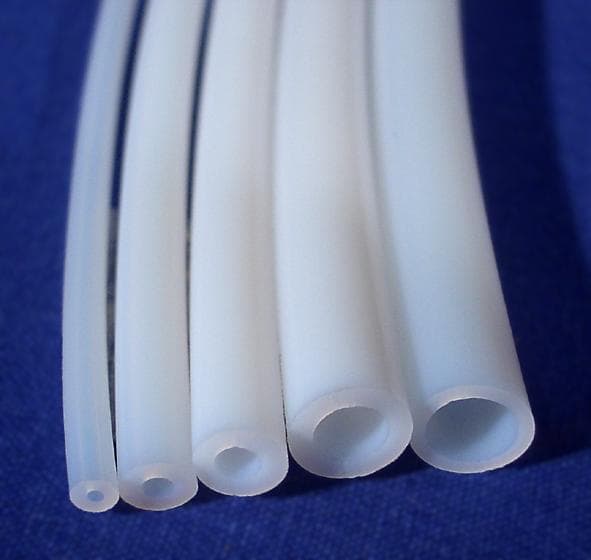

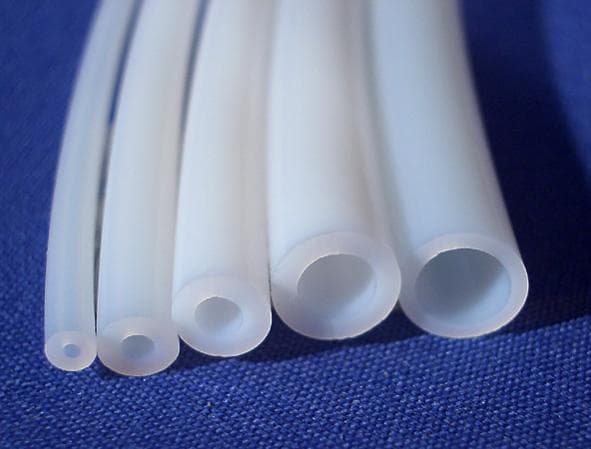

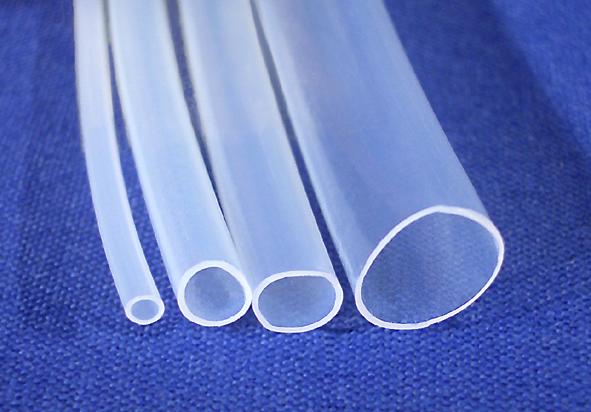

PTFE Thin Wall Sleeving
, Bore : 0.50mm, Wall : 0.25mm, Size Ref. : TW26, Coil Length : 30m
Price (+VAT)
per Coil
Select all options to see price
Product Code
01-96-1721
Availability
Tensile Strength
25 MPa
Hardness
55º Shore 'D'
Density
2.10 g/cm³
Elongation at Break
350%
Temperature Range
-200ºC to 260ºC
Material Grade
Food
Colour
White / Translucent White
Electrical
BS2848
Dielectric Constant
2.08 at 20°C
Dissipation Factor
< 0.0005
Dielectric Strength
>20kV/mm
Volume Resistivity
>10^18 ohms/cm
Surface Resistivity
>10^16 ohms/cm²
