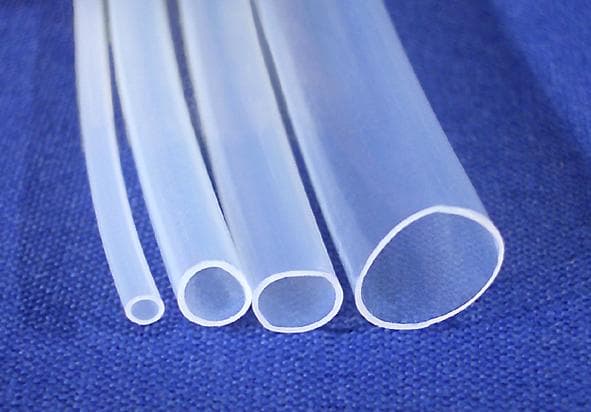

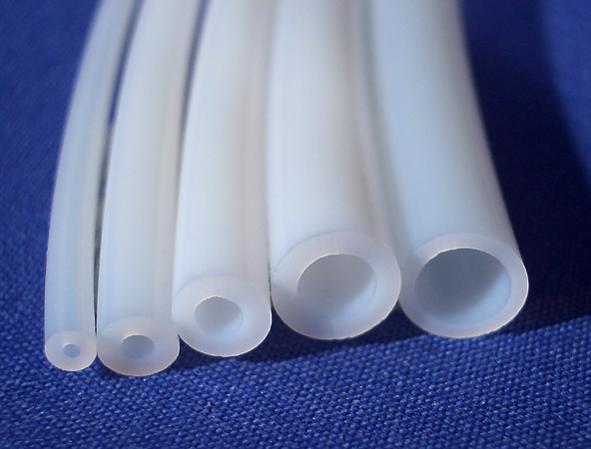

PTFE Imperial Tubing
PTFE Tubing - Imperial, Bore : 3/8in., O.D. : 7/16in.
Price (+VAT)
per Metre
Select all options to see price
Product Code
01-96-1708
Availability
Tensile Strength
25 MPa
Hardness
55º Shore 'D'
Density
2.10 g/cm³
Elongation at Break
350%
Temperature Range
-200ºC to 260ºC
Material Grade
Food
Colour
White / Translucent White
Electrical
BS2848
Dielectric Constant
2.08 at 20°C
Dissipation Factor
< 0.0005
Dielectric Strength
>20kV/mm
Volume Resistivity
>10^18 ohms/cm
Surface Resistivity
>10^16 ohms/cm²
Products 3/8" Bore and over are sold by the metre
Please order the meterage you require and this will be cut from our stock coils.
These products are held in stock in 10m length coils, except 01-96-1752 which is held in stock in 3m straight lengths.
